Brake calipers + brake disc pads for PORSCHE 964 turbo 944 FRONT conversion Big Red
Complete set of the legendary “Big Red”
Description:
Brake discs and brake pads are among the most important wear parts in motor vehicles. A failure of the braking system can have serious consequences. Therefore, brake discs and brake pads should be checked and replaced at regular intervals.
Similar to brake pads, worn brake discs are noticeable through a reduction in braking performance and a significantly longer braking distance. During the braking process, vibrations in the steering wheel or the vehicle swerving to the side can also occur.
When changing the brake disc, the brake pads should always be replaced. In addition, for brake systems with a warning contact, it should definitely be replaced as soon as it has been triggered.

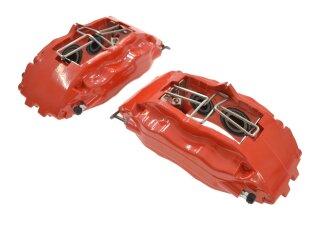

Here we offer you a new edition of the coveted "Big Red" brake calipers. The brake calipers are of high quality with the best workmanship and are produced by the Danish manufacturer JP-Dansk. Die Bremszangen waren serienmäßig auf dem Porsche 964 Turbo/965 und dem Porsche 993 Turbo an der Vorderachse verbaut.
The Audi RS2 also used the Porsche brakes with a 322mm disc diameter.
You can also mount these radially screwed brake calipers with adapters on the 964/993 Carrera or all 944 S2 and other Porsche models.
If you are interested, we will be happy to advise you.

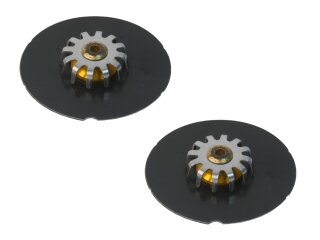

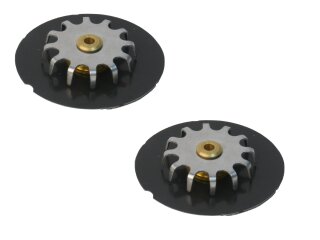

When replacing the brake pads, the damping plates should also be replaced. These are available in a wide variety of diameters depending on the piston diameter. The piston diameters vary depending on the vehicle, front or rear axle, and different piston diameters are also installed within a brake caliper.
Included in the set are:

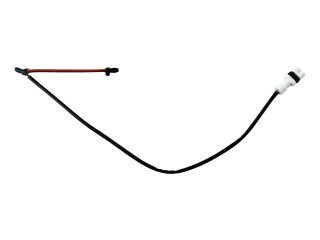

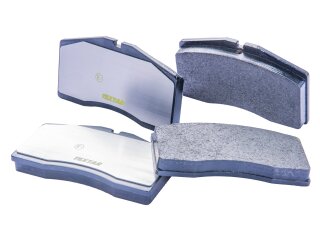

2 brake calipers, 2 brake discs, 2 warning contacts, the necessary brake pads and damping plates.
This product is a set of branded goods from renowned automotive suppliers created by partworks. If we identify the manufacturer of the components, for example through cardboard packaging, it will also be a set component from this manufacturer. Please do not forget that even the largest suppliers sometimes trade goods with each other. In any case, you can always rely on the high quality standards of our components.
Additional information:
● Outer diameter: 322 mm
● Brake disc thickness: 32 mm
● Brake disc height: 77 mm
● Centering diameter: 103 mm
● Bolt circle diameter: 130 mm
● Brake pad width: 131.8 mm
● Brake pad height: 75 mm
● Brake pad thickness: 17.5 mm
● Hole spacing: 130 mm
● Brake pad holder width: 133 mm
● Piston outer diameter: 33 mm
● Piston outer diameter: 42 mm
● Piston inner diameter: 20 mm
● Piston inner diameter: 28 mm
● Brake piston distance: 72 mm
● Brake disc passage: 36 mm
Reference numbers:
96435109601, 964.351.096.01, 964 351 096 01
92835194903, 928.351.949.03, 928 351 949 03
92835194904, 928.351.949.04, 928 351 949 04
96535104500, 965.351.045.00, 965 351 045 00
96535104600, 965.351.046.00, 965 351 046 00
96535109600, 965.351.096.00, 965 351 096 00
96535142401, 965.351.424.01, 965 351 424 01
99335142510, 993.351.425.10, 993 351 425 10
99335142610, 993.351.426.10, 993 351 426 10
99361236801, 993.612.368.01, 993 612 368 01
99335194904, 993.351.949.04, 993 351 949 04
99335194903, 993.351.949.03, 993 351 949 03
92835194002, 928.351.940.02, 928 351 940 02
92835194003, 928.351.940.03, 928 351 940 03
92835199997, 928.351.999.97, 928 351 999 97
965351
92835109616, 928.351.096.16, 928 351 096 16
92835109611, 928.351.096.11, 928 351 096 11
92835194902, 928.351.949.02, 928 351 949 02
92835109615, 928.351.096.15, 928 351 096 15
92835109610, 928.351.096.10, 928 351 096 10
96535142510, 965.351.425.10, 965 351 425 10
96535142610, 965.351.426.10, 965 351 426 10
99361236800, 993.612.368.00, 993 612 368 00
96561236800, 965.612.368.00, 965 612 368 00
99335194900, 993.351.949.00, 993 351 949 00
99335194902, 993.351.949.02, 993 351 949 02
Scope of delivery:
According to the picture and description
Suitable for:
964 turbo 3.6
This set is suitable (with adapters) for upgrading the 964 Carrera or 944 S2/turbo as well as 968 brake systems
