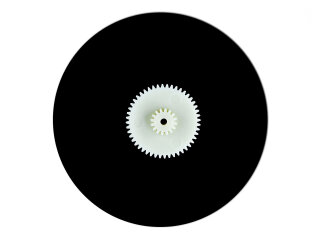

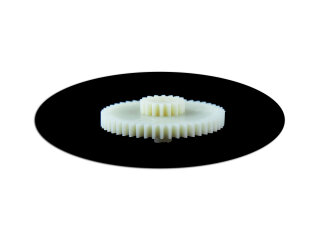

E3 48x16 Gear for VDO Speedometer/Instrument Cluster/Odometer Repair

Description:
In VDO instruments, the odometer (not the speedometer) is reduced in two stages, meaning each drive consists of three gears: E1, E2, and E3.

- The driving gearE1is identical in all cases and has 12 teeth.
- The gearE2(double gear) is also identical in all cases, flat on the back (no collar), and has 48x12 teeth.
- The gearE3(double gear) has a collar on the back and exists in nine variations with different numbers of teeth.

For repairs, we recommend replacing all 3 gears:
After removal, please count the teeth of the E3 gear and order the corresponding version from the shop. We have set up separate kits only for definitively known vehicle model-to-gear variant combinations.

The following variants of the double gearE3exist:
48x12
48x13
48x14
48x15
48x16
48x17
48x18
48x19
48x21

You will find the exact name in the respective offer title. Use the search function in the shop and search for E1, E2, or E3.

Advantages:
Our gears are injection-molded from high-quality thermoplastic: This ensures excellent dimensional accuracy and an involute tooth shape that runs particularly smoothly against the mating gear.
We stock all gears for VDO and other instrument manufacturers and can therefore supply replacements or exchange incorrectly ordered gears if needed.

Notes:
Buying a used speedometer might save you the cost of repair, but it also carries the risk that the gear will break soon. Storage and cold temperatures, in particular, further damage the gears.
If you have already disassembled the speedometer, it is also advisable to replace the bulbs. These lose a noticeable amount of brightness over the years. They are available at any car dealership or auto parts store.

If you disassemble the speedometer beforehand, please note that the speedometer needle shaft is very delicate. Grasp the speedometer needle in the middle and turn it counterclockwise, pulling gently. Friction is all that holds the needle on the shaft.

Partworks GmbH is a German company specializing in the reverse engineering and distribution of spare parts for Porsche. Particular emphasis is placed on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As specialists in classic car spare parts, we are aware of our customers' quality requirements. Therefore, you can be sure that our reverse-engineered parts meet the exact specifications of the original and, in some cases, even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Last but not least, our DIN ISO 9001-certified quality management system confirms the thoroughness of our work. If you see the manufacturer's name, partworks is either an in-house development or an original equipment manufacturer (OE) part. Original equipment manufacturers (OEMs) are those manufacturers who supplied the original product to the vehicle manufacturer but cannot sell it under their own brand on the open market. Scope of delivery: see illustration. Suitable for: General speedometer gear, gear, disc gear, roller gear, double gear.>
