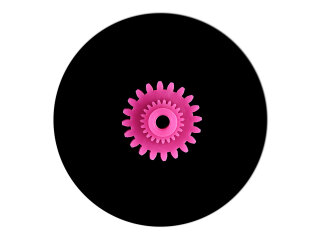

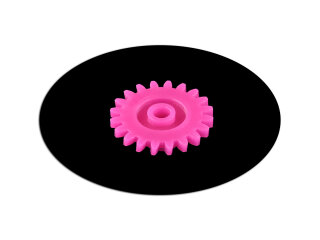

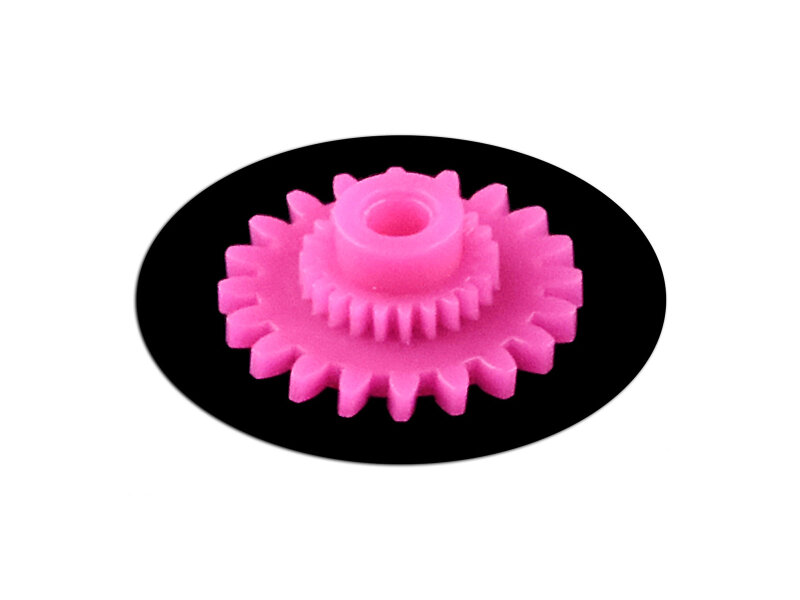

Instrument Cluster Gear for BMW E23 7 Series VDO Cockpit Repair 20x23

Instrument Cluster Gear for BMW E23 7 Series VDO Cockpit Repair 20x23

Item number: 2200

Reference numbers: PW, 62121371212, 62121376598, 62121380414, 62121373417, 62121375232, 62121380411

21,90 €

incl. 19% VAT , plus

RRP: 25,90 €

receive with purchase 42 Bonuspoints

Available immediately
Order now - shipping will take place on the next working day.
if you order within
hours and minutes
.

Delivery time: 2 - 3 working days (DE - different for other countries)

pcs

Available immediately
Order now - shipping will take place on the next working day.
if you order within
hours and minutes
.

Delivery time: 2 - 3 working days (DE - different for other countries)

Instrument Cluster Gear for BMW E23 7 Series VDO Cockpit Repair 20x23

Excellent build quality

Description:
If the odometer/trip odometer on your vehicle has failed, this gear is usually the cause. The original beige-brown gears crumble over the years and must be replaced.

Variants:
While we can say with a high degree of certainty, we cannot guarantee 100% certainty which model uses which gear size. Too many factors (engine type/transmission type/year of manufacture/model) are involved.
The following data reliably helps in determining the correct gear:
Variants of this double gear for VDO speedometers:
20x21 (17.60mm/9.00mm) Number of teeth of the opposing partner gear: 49 teeth
20x22 (17.60mm/9.40mm) Number of teeth of the opposing partner gear: 48 teeth
20x23 (17.60mm/9.65mm) Number of teeth of the opposing partner gear: 47 teeth
20x29 (17.60mm/12.05mm) Number of teeth of the opposing partner gear: 41 teeth
20x30 (17.60mm/12.55mm) Number of teeth of the opposing partner gear: 40 teeth
20x32 (17.60mm/13.40mm) Number of teeth of the opposing partner gear: 38 teeth
If in doubt, simply count the teeth of the gear into which the smaller gear engages.

Service:
We have over 100 gear variants in stock and can supply the appropriate gears if required!

+ all alternative sizes always in stock
+ fast exchange service in case of size deviation

For repairs, we will send you an illustrated repair manual (German/English) by email.

Advantages:
While buying a used speedometer initially saves on repairs, it carries the risk that the gear will also break soon. Storage times and cold temperatures, in particular, further damage the gears. Due to an incorrect choice of material by VDO, all original gears of this type will break over time!
If you have already disassembled the speedometer, we also recommend replacing the bulbs. These lose a noticeable amount of brightness over the years.

Quality:
Our gears are meticulously manufactured using injection molding, true to the original design, and are not 3D-printed in-house creations. We work with a manufacturer specializing in the production of plastic gears and a global market leader in repair solutions.
The involute tooth geometry is retained; this is the only way to ensure low-friction sliding of the tooth flanks between the gear pairs.
We use the thermoplastic Celron with graphite additives as the material. These ensure low friction and wear-free operation.

If you disassemble the speedometer beforehand, please note that the speedometer needle shaft is very delicate. Grasp the speedometer needle in the center and turn it counterclockwise, pulling gently as you do so. Friction is all that keeps the needle on the shaft.

Partworks GmbH is a German company specializing in the reverse engineering and distribution of spare parts for Porsche. Particular emphasis is placed on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As specialists in classic car spare parts, we are aware of our customers' quality requirements. Therefore, you can be sure that our reverse-engineered parts meet the exact specifications of the original and, in some cases, even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Last but not least, our DIN ISO 9001-certified quality management system confirms the thoroughness of our work. If you see the manufacturer's name, partworks is either an in-house development or an original equipment manufacturer (OE) product. Original equipment manufacturers are those who supplied the original product to the vehicle manufacturer but cannot sell it under their own brand on the open market. Additional Information:
● Diameter: 17.6 mm
● Number of Teeth: 20
● Diameter: 9.65 mm
● Number of Teeth: 23 Reference Numbers: Attention: This product is a component of the part with the following OE number(s). Our item is not listed separately with its own OE number as a spare part by the vehicle manufacturer. For ease of finding and identification, the OE numbers of the corresponding assembly groups are listed here:

62121371212, 621.213.712.12, 621 213 712 12
62121376598, 621.213.765.98, 621 213 765 98
62121380414, 621.213.804.14, 621 213 804 14
62121373417, 621.213.734.17, 621 213 734 17
62121375232, 621.213.752.32, 621 213 752 32
62121380411, 621.213.804.11, 621 213 804 11

Reference numbers:
62121371212,   621.213.712.12,   621 213 712 12
62121376598,   621.213.765.98,   621 213 765 98
62121380414,   621.213.804.14,   621 213 804 14
62121373417,   621.213.734.17,   621 213 734 17
62121375232,   621.213.752.32,   621 213 752 32
62121380411,   621.213.804.11,   621 213 804 11

Scope of delivery:
1 gear

Suitable for:
BMW 7 Series E23 ('77-'86)
Only European vehicles with km speedometer.
While we can say with a high degree of certainty
, we cannot say with 100% certainty
which model uses which gear size. Too many factors (engine type/transmission type/year of manufacture/model) are involved. Should you unexpectedly require a different gear

Brand	Model	Type	Year of construction	Motor
BMW	7er (E23)	725i	1977/7 - 1986/6	110 KW / 150 PS
BMW	7er (E23)	728	1977/5 - 1979/8	125 KW / 170 PS
BMW	7er (E23)	728i	1977/9 - 1986/8	135 KW / 184 PS
BMW	7er (E23)	730	1977/5 - 1979/8	135 KW / 184 PS
BMW	7er (E23)	732i	1979/9 - 1986/8	145 KW / 197 PS
BMW	7er (E23)	733i	1977/5 - 1986/8	145 KW / 197 PS
BMW	7er (E23)	735i	1984/5 - 1986/9	136 KW / 185 PS
BMW	7er (E23)	735i	1985/4 - 1986/8	141 KW / 192 PS
BMW	7er (E23)	735i	1982/9 - 1986/9	160 KW / 218 PS
BMW	7er (E23)	735i	1979/9 - 1982/9	160 KW / 218 PS
BMW	7er (E23)	745i	1980/4 - 1983/4	185 KW / 252 PS
BMW	7er (E23)	745i	1983/5 - 1986/8	185 KW / 252 PS
