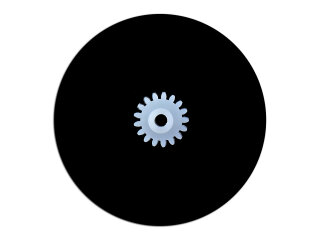

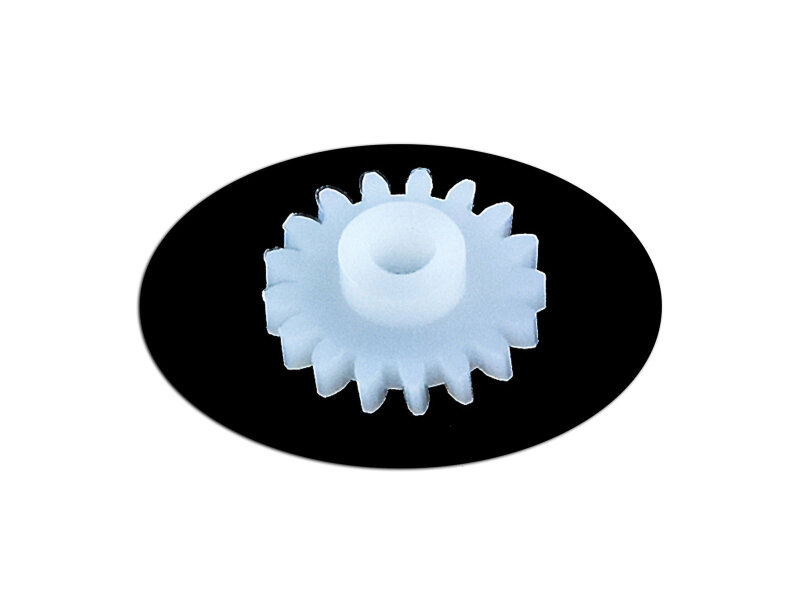

M17 Speedometer Gear for AUDI 75 80 B1 B2 100 C1 C2 Speedometer Repair Mechanical

M17 Speedometer Gear for AUDI 75 80 B1 B2 100 C1 C2 Speedometer Repair Mechanical

Item number: 2106

Reference numbers: 21831, 88471067

19,90 €

incl. 19% VAT , plus

RRP: 23,90 €

receive with purchase 38 Bonuspoints

Available immediately
Order now - shipping will take place on the next working day.
if you order within
hours and minutes
.

Delivery time: 2 - 3 working days (DE - different for other countries)

pcs

Available immediately
Order now - shipping will take place on the next working day.
if you order within
hours and minutes
.

Delivery time: 2 - 3 working days (DE - different for other countries)

M17 Speedometer Gear for AUDI 75 80 B1 B2 100 C1 C2 Speedometer Repair Mechanical

Excellent workmanship

Description:
In mechanical speedometers, this gear very often breaks radially with a fine hairline crack. It then no longer sits firmly on the shaft and shifts to the side. Sometimes this crack is barely visible, so simply test whether the gear can be rotated/moved on the shaft.

Dimensions:
Overall width (uniform): 6 mm
Tooth flank width (uniform): 2 mm
Diameter (tip-to-tip):
M10 = 12.3 mm
M11 = 11.0 mm
M12 = 11.3 mm
M13 = 11.0 mm
M14 = 11.2 mm
M15 = 11.7 mm
M16 = 12.1 mm
M17 = 11.9 mm
M18 = 11.9 mm
M19 = 12.5 mm
M21 = 12.5 mm
M25 = 13.2 mm
M29 = 13.3 mm

Note:
We also recommend replacing the roller gear on the same shaft if you have already disassembled and opened the speedometer. Both gears are typical weak points. If the gear can be turned on the shaft, it is already damaged.
There are 3 different thicknesses available (1.3mm; 2.2mm; 3.0mm). Simply measure the tooth width of the gear and order the correct one from the shop.
Search term: "Roller gear"

Important:
Please count the number of teeth before purchasing. Unfortunately, we cannot provide information on the number of teeth for all models.
We stock all gear variants.

Service:
We stock over 100 gear variants and can supply the correct gears if needed!

+ All alternative sizes always in stock
+ Fast exchange service in case of size deviation

Quality:
Our gears are meticulously and faithfully manufactured using injection molding and are not 3D-printed in-house creations. We collaborate with a manufacturer specializing in the production of plastic gears and a global market leader in repair solutions.
The involute tooth geometry is maintained; this is the only way to ensure low-friction sliding of the tooth flanks between the gear pairs.
We use the thermoplastic Celron with graphite additives as the material. These ensure low friction and wear-free operation.

If you disassemble the speedometer beforehand, please note that the speedometer needle shaft is very delicate. Grasp the speedometer needle in the middle and turn it counterclockwise. Pull gently while doing so. Friction is all that holds the needle on the shaft.

Partworks GmbH is a German company specializing in the reverse engineering and distribution of spare parts for Porsche. We place particular emphasis on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As specialists in classic car spare parts, we are well aware of our customers' high quality standards. Therefore, you can be confident that our redesigned parts meet the exact specifications of the original and, in some cases, even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Our DIN ISO 9001-certified quality management system further confirms the thoroughness of our work. When you see the manufacturer's name, partworks indicates either an in-house development or an original equipment manufacturer (OEM) part (OE quality). OEMs are the manufacturers who supplied the original product to the vehicle manufacturer but cannot sell it under their own brand on the open market.

Reference numbers:
21831
88471067

Scope of delivery:
1 gear

Suitable for:
Audi 50
Audi 80 (B1 / B2)
Audi 100 (C1 / C2)
Audi 100 Coupé S
Audi Super 90 (F103)
Audi 72 / 60 / 75 (F103)
The gears are suitable for all mechanical VDO speedometers.

Brand	Model	Type	Year of construction	Motor
Audi	100 (431, 433, 434)	1.6	1976/8 - 1982/7	63 KW / 85 PS
Audi	100 (431, 433, 434)	1.9	1980/8 - 1984/8	74 KW / 100 PS
Audi	100 (431, 433, 434)	2.0	1976/6 - 1978/8	85 KW / 115 PS
Audi	100 (431, 433, 434)	2.0 D	1978/8 - 1982/7	51 KW / 70 PS
Audi	100 (431, 433, 434)	2.1	1977/10 - 1982/7	85 KW / 115 PS
Audi	100 (431, 433, 434)	2.1	1977/3 - 1982/7	100 KW / 136 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.6	1975/1 - 1976/7	63 KW / 85 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1968/11 - 1971/11	59 KW / 80 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1971/9 - 1974/7	63 KW / 85 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1968/11 - 1971/11	66 KW / 90 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1970/10 - 1976/7	74 KW / 100 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.9	1971/9 - 1976/7	82 KW / 112 PS
Audi	100 Avant (435, 436)	1.6	1977/7 - 1983/2	63 KW / 85 PS
Audi	100 Avant (435, 436)	1.9	1980/8 - 1982/7	74 KW / 100 PS
Audi	100 Avant (435, 436)	2.0	1977/8 - 1980/7	85 KW / 115 PS
Audi	100 Avant (435, 436)	2.0 D	1978/8 - 1983/2	51 KW / 70 PS
Audi	100 Avant (435, 436)	2.1	1977/7 - 1983/2	85 KW / 115 PS
Audi	100 Avant (435, 436)	2.1	1977/7 - 1983/2	100 KW / 136 PS
Audi	100 Coupe (817)	1.9	1971/8 - 1976/12	82 KW / 112 PS
Audi	100 Coupe (817)	1.9	1970/7 - 1971/7	85 KW / 115 PS
Audi	50 (863)	0.8	1976/1 - 1978/7	25 KW / 34 PS
Audi	50 (863)	1.1	1974/8 - 1978/7	37 KW / 50 PS
Audi	50 (863)	1.1	1974/8 - 1977/7	44 KW / 60 PS
Audi	50 (863)	1.3	1977/1 - 1978/7	43 KW / 58 PS
Audi	50 (863)	1.3	1977/8 - 1978/7	44 KW / 60 PS
Audi	60 (613, 615)	1.5	1968/9 - 1972/8	40 KW / 55 PS
Audi	60 (613, 615)	1.5	1968/9 - 1972/8	48 KW / 65 PS
Audi	60 Variant (613, 615)	1.5	1968/9 - 1972/8	40 KW / 55 PS
Audi	60 Variant (613, 615)	1.5	1968/9 - 1972/8	48 KW / 65 PS
Audi	75 (613, 615)	1.7	1968/9 - 1972/8	55 KW / 75 PS
Audi	75 Variant (615)	1.7	1968/9 - 1972/8	55 KW / 75 PS
Audi	80 (613)	1.7	1966/9 - 1968/8	59 KW / 80 PS
Audi	80 (80, 82)	1.3	1972/5 - 1978/7	40 KW / 55 PS
Audi	80 (80, 82)	1.3	1972/5 - 1978/7	44 KW / 60 PS
Audi	80 (80, 82)	1.5	1972/5 - 1975/8	55 KW / 75 PS
Audi	80 (80, 82)	1.5	1972/5 - 1976/7	63 KW / 85 PS
Audi	80 (80, 82)	1.6	1976/1 - 1978/7	53 KW / 72 PS
Audi	80 (80, 82)	1.6	1975/9 - 1978/7	55 KW / 75 PS
Audi	80 (80, 82)	1.6	1976/8 - 1978/7	61 KW / 83 PS
Audi	80 (80, 82)	1.6	1975/9 - 1978/7	63 KW / 85 PS
Audi	80 (80, 82)	1.6 GT	1973/9 - 1976/7	74 KW / 100 PS
Audi	80 (80, 82)	1.6 GTE	1976/1 - 1978/7	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.3	1978/9 - 1981/7	40 KW / 55 PS
Audi	80 (811, 813, 814, 819, 853)	1.3	1978/9 - 1981/7	44 KW / 60 PS
Audi	80 (811, 813, 814, 819, 853)	1.3	1978/9 - 1986/7	44 KW / 60 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1981/7	51 KW / 70 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1986/2 - 1986/7	54 KW / 73 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1987/3	55 KW / 75 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1986/7	55 KW / 75 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1983/2	63 KW / 85 PS
Audi	80 (811, 813, 814, 819, 853)	1.6 D	1980/8 - 1986/8	40 KW / 54 PS
Audi	80 (811, 813, 814, 819, 853)	1.6 GLE	1978/8 - 1982/7	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.6 TD	1981/8 - 1986/5	51 KW / 70 PS
Audi	80 (811, 813, 814, 819, 853)	1.8	1986/2 - 1986/7	65 KW / 88 PS
Audi	80 (811, 813, 814, 819, 853)	1.8	1983/1 - 1986/8	66 KW / 90 PS
Audi	80 (811, 813, 814, 819, 853)	1.8	1983/8 - 1986/8	68 KW / 93 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 CC quattro	1984/8 - 1986/8	66 KW / 90 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 CC quattro	1985/8 - 1986/8	68 KW / 93 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE	1985/8 - 1986/7	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE	1984/10 - 1986/8	82 KW / 112 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE quattro	1985/3 - 1986/8	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE quattro	1984/8 - 1986/8	82 KW / 112 PS
Audi	80 (811, 813, 814, 819, 853)	1.9 CD-5S	1981/9 - 1983/7	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.0	1983/10 - 1984/9	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.0 quattro	1983/10 - 1984/9	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.2	1980/10 - 1983/7	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.2 quattro	1982/8 - 1984/7	96 KW / 131 PS
Audi	80 (811, 813, 814, 819, 853)	2.2 quattro	1982/8 - 1984/7	100 KW / 136 PS
Audi	80 (811, 813, 814, 819, 853)	2.2 quattro	1982/8 - 1984/7	100 KW / 136 PS
Audi	80 Variant	1.7	1966/9 - 1968/8	59 KW / 80 PS
Audi	90 (813, 814, 853)	1.6 TD	1985/10 - 1987/1	51 KW / 70 PS
Audi	90 (813, 814, 853)	2.0	1986/3 - 1987/3	83 KW / 113 PS
Audi	90 (813, 814, 853)	2.0	1984/10 - 1987/3	85 KW / 115 PS
Audi	90 (813, 814, 853)	2.0 quattro	1984/8 - 1986/8	85 KW / 116 PS
Audi	90 (813, 814, 853)	2.2	1985/1 - 1987/3	85 KW / 115 PS
Audi	90 (813, 814, 853)	2.2	1984/10 - 1987/3	100 KW / 136 PS
Audi	90 (813, 814, 853)	2.2 e quattro	1985/8 - 1987/3	88 KW / 120 PS
Audi	90 (813, 814, 853)	2.2 e quattro	1984/11 - 1987/3	100 KW / 136 PS
Audi	A6 (4B2, 4B4)	2.7 T quattro	1997/12 - 2005/1	169 KW / 230 PS
Audi	A6 (4B2, 4B4)	2.8 quattro	1998/1 - 2000/4	132 KW / 180 PS
Audi	F103 (613, 615)	1.7	1965/8 - 1968/8	53 KW / 72 PS
Audi	F103 Variant (613, 615)	1.7	1966/4 - 1968/8	53 KW / 72 PS
Audi	Super 90	1.8	1966/9 - 1971/8	66 KW / 90 PS
VW	1500,1600 (31)	1.5	1961/4 - 1973/7	33 KW / 45 PS
VW	1500,1600 (31)	1.5 S	1963/8 - 1965/7	40 KW / 54 PS
VW	1500,1600 (31)	1.6	1965/8 - 1973/7	40 KW / 54 PS
VW	1500,1600 (31)	1.6 L	1964/7 - 1973/7	37 KW / 50 PS
VW	1500,1600 (31)	1.6 TL	1965/8 - 1973/7	40 KW / 54 PS
VW	1500,1600 Schrägheck (31)	1.5 L	1968/7 - 1973/7	33 KW / 45 PS
VW	1500,1600 Schrägheck (31)	1.6 TL	1965/8 - 1973/7	40 KW / 54 PS
VW	1500,1600 Variant (36)	1.5	1961/4 - 1973/7	33 KW / 45 PS
VW	1500,1600 Variant (36)	1.5 S	1963/8 - 1965/7	40 KW / 54 PS
VW	1500,1600 Variant (36)	1.6 L	1965/8 - 1973/7	40 KW / 54 PS
