MM3F gear for BMW 3 Series E30 R45 K75 C S RT R100 MOTOMETER speedometer instrument cluster

MM3F gear for BMW 3 Series E30 R45 K75 C S RT R100 MOTOMETER speedometer instrument cluster

Item number: 2054

OE reference no.: 6160444216, 6160444316, 1377302, 1381851, 1381871, 1386499, 110008357002, 110008403021, 110008403036, 1244388, 62112305267, 62121243511, 62121243323, 62117655538, 62111459917, 62112305251, 62112305252, 62112305253

19,90 €

incl. 19% VAT , plus

RRP: 23,90 €

Du würdest beim Kauf

dieses Artikels 39 Bonus Points sammeln.

Available immediately
Shipping will take place next working day.

Delivery time: 1 - 3 working days (DE)

pcs

Available immediately
Shipping will take place next working day.

Delivery time: 1 - 3 working days (DE)

MM3F gear for BMW 3 Series E30 R45 K75 C S RT R100 MOTOMETER speedometer instrument cluster

Description:
The 4-component translation is a common source of errors on motometer odometers of various models. The affected drives are installed in many vehicles from European, Japanese and American brands worldwide. Including motorcycles from BMW.

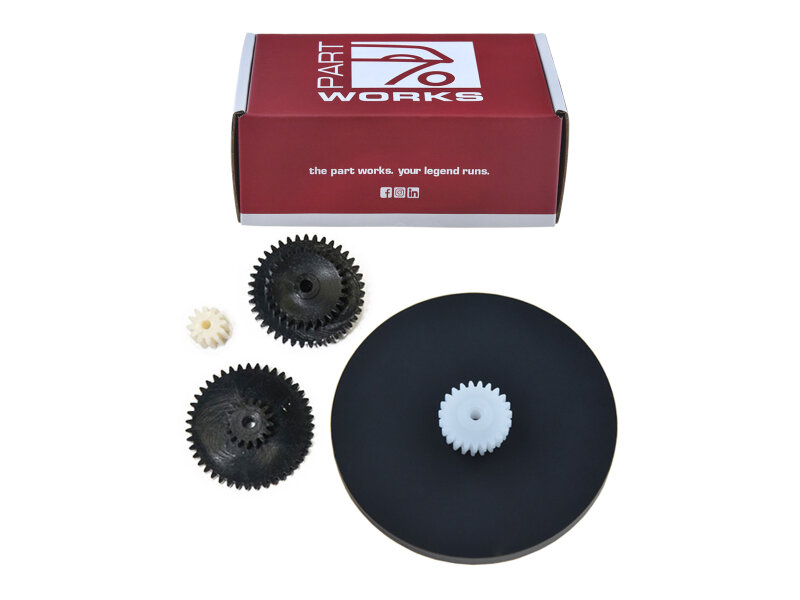

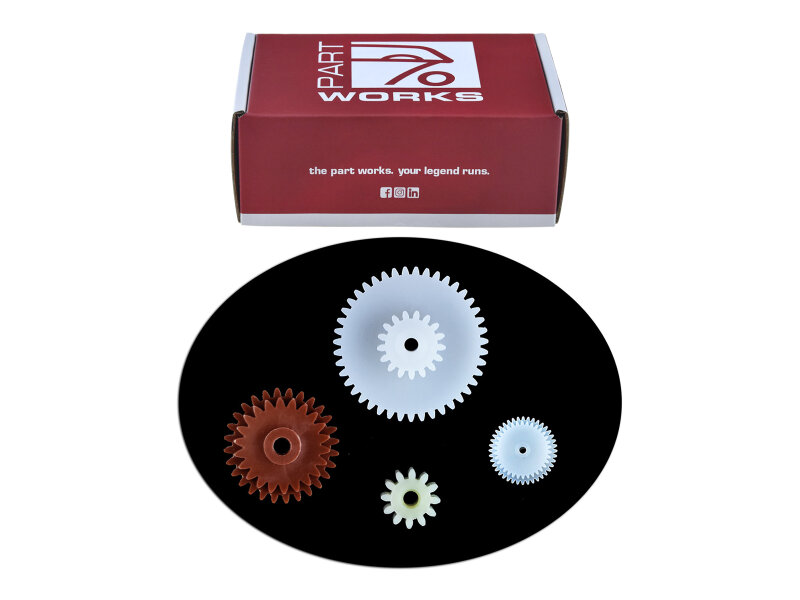

The drive consists of 4 gears:
- The driving gear E1 is identical for all and has 12 teeth (for VDO and Motometer)
- Gear MM2 (double gear) in 4 variants (MM2, MM2c, MM2d, MM2e)
- Gear MM3 (double gear) in 6 variants (MM3, MM3b, MM3c, MM3d, MM3e, MM3f)
- Gear MM4 (double gear) in 5 variants (MM4, MM4b, MM4c, MM4e, MM4f)

The numbers of teeth are assigned to the designations below:
MM2 = 44x16 teeth
MM2c = 44x17 teeth
MM2d = 43x16 teeth
MM2e = 43x17 teeth

MM3 = 40x22 teeth
MM3b = 40x28 teeth
MM3c = 38x23 teeth
MM3d = 38x28 teeth
MM3e = 39x28 teeth

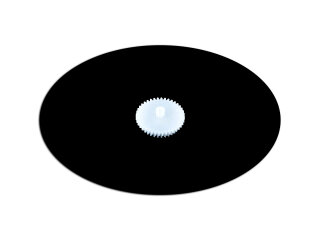

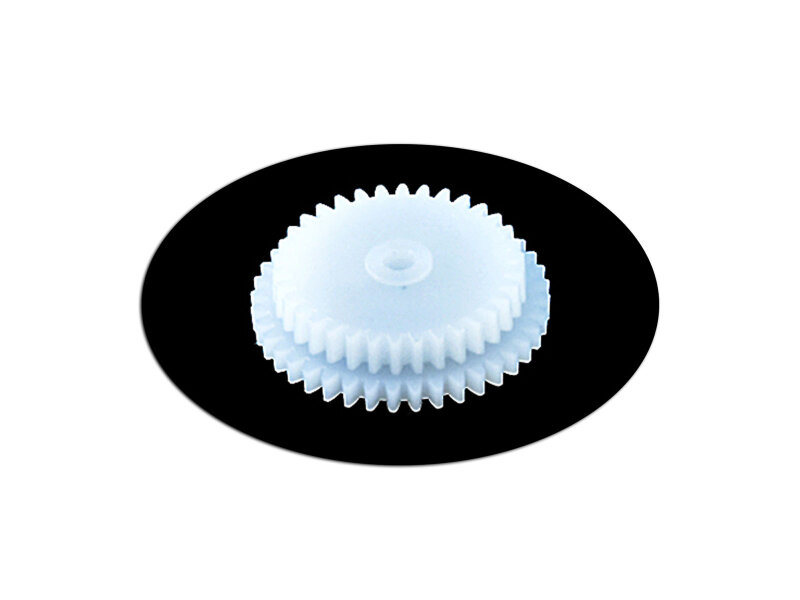

MM3f = 40x34 teeth

MM4 = 35x22
MM4b = 28x22
MM4c = 33x26
MM4e = 28x22 (star-shaped teeth, original part is brown/beige)
MM4f = 23x22 teeth

Before purchasing, we ask you to determine which variant is right for you by opening the instrument cluster and checking the gears. Use the search function in the shop and look for the gear designations (e.g. MM4 or E1).

You can find out which gear you are purchasing with this offer in the offer title

Notes:
We have a variety of speedometer gears for Motometer, VDO and other speedometers and instruments in our program. Unfortunately, the exact combination (vehicle model to gear variant) cannot be determined for every model, but we have separate offers in the shop for the well-known and most common combinations.
Buying a used speedometer may save you having to repair it, but it carries the risk that the gear will break in the near future.
Storage times and cold temperatures in particular cause additional damage to the gears. In addition, you keep your original mileage with the repair!
If you have dismantled the speedometer, we also recommend replacing the light bulbs. These noticeably lose performance over the years. They are available at every car dealership and accessories store.

Your advantages:
Our gears are injection molded from high-quality thermoplastic: This enables very good dimensional accuracy and an involute shape of the teeth, which run particularly gently on the partner gear.

If you disassemble the speedometer in advance, please note that the shaft of the speedometer needle is very sensitive. Grab the speedometer needle in the middle and turn it counterclockwise. Pull lightly. Friction is everything that keeps the needle on the shaft.

Brand information:
partworks GmbH is a German company that specializes in reverse engineering and the distribution of spare parts for Porsche. Particular emphasis is placed on high quality and excellent service. More than 130,000 car fans worldwide are already satisfied customers of the Paderborn-based company. As a specialist company for classic car spare parts, we are aware of the quality requirements of our customers. Therefore, when it comes to subsequent developments, you can be sure that the requirements are very close to the original and in some cases even exceed them. With our own engineering department and internal testing, we can ensure the reliability of our products. Last but not least, our DIN ISO 9001 certified quality management confirms the thoroughness of our work. If you see the manufacturer information partworks, it means either an in-house development or an item from the original manufacturer (OE quality). Original equipment manufacturers are those manufacturers who have supplied the original product to the vehicle manufacturer but cannot be active in free trade under their own brand.

Reference numbers:
6160444216
6160444316
1377302
1381851
1381871
1386499
110008357002
110008403021
110008403036
1244388
621.123.052.67
621.212.435.11
621.212.433.23
621.176.555.38
621.114.599.17
621.123.052.51
621.123.052.52
621.123.052.53

Scope of delivery:
1 gear / 1 gear

Suitable for:
General

Product safety:

Manufacturer information:

Name:partworks GmbH

Street:Otto-Stadler-Str. 9c

City:33100 Paderborn

State:Nordrhein-Westfalen

Country:Deutschland

Email:info@partworks.de

Website:https://partworks.de

Brand	Model	Type	Year of construction	Motor
BMW	3er (E30)	315	1982/9 - 1991/12	55 KW / 75 PS
BMW	3er (E30)	316	1983/9 - 1988/6	66 KW / 90 PS
BMW	3er (E30)	316	1983/9 - 1988/6	66 KW / 90 PS
BMW	3er (E30)	316i	1987/9 - 1991/6	73 KW / 100 PS
BMW	3er (E30)	316i	1987/8 - 1988/8	75 KW / 102 PS
BMW	3er (E30)	316i	1988/7 - 1991/6	75 KW / 102 PS
BMW	3er (E30)	318i	1984/12 - 1988/8	75 KW / 102 PS
BMW	3er (E30)	318i	1982/9 - 1987/8	77 KW / 105 PS
BMW	3er (E30)	318i	1987/6 - 1991/12	83 KW / 113 PS
BMW	3er (E30)	318i	1987/9 - 1991/6	85 KW / 115 PS
BMW	3er (E30)	318is	1989/9 - 1991/8	100 KW / 136 PS
BMW	3er (E30)	320i	1982/9 - 1991/12	92 KW / 125 PS
BMW	3er (E30)	320i	1986/10 - 1991/4	95 KW / 129 PS
BMW	3er (E30)	320is	1988/5 - 1990/12	141 KW / 192 PS
BMW	3er (E30)	323i	1982/9 - 1983/8	102 KW / 139 PS
BMW	3er (E30)	323i	1983/9 - 1986/9	110 KW / 150 PS
BMW	3er (E30)	324d	1985/9 - 1990/12	63 KW / 86 PS
BMW	3er (E30)	324td	1987/9 - 1991/8	85 KW / 115 PS
BMW	3er (E30)	325e 2.7	1983/10 - 1988/12	90 KW / 122 PS
BMW	3er (E30)	325e 2.7	1985/1 - 1987/8	95 KW / 129 PS
BMW	3er (E30)	325i	1986/12 - 1991/6	125 KW / 170 PS
BMW	3er (E30)	325i	1983/9 - 1989/11	126 KW / 171 PS
BMW	3er (E30)	325i X	1986/9 - 1991/8	125 KW / 170 PS
BMW	3er (E30)	325i X	1986/3 - 1987/12	126 KW / 171 PS
BMW	3er (E30)	M3 2.3	1986/7 - 1991/6	143 KW / 195 PS
BMW	3er (E30)	M3 2.3	1987/2 - 1989/5	147 KW / 200 PS
BMW	3er (E30)	M3 2.3	1986/1 - 1990/12	158 KW / 215 PS
BMW	3er (E30)	M3 EVO I 2.3	1988/10 - 1990/10	162 KW / 220 PS
BMW	3er (E30)	M3 EVO II 2.5	1990/1 - 1992/1	175 KW / 238 PS
BMW	3er Cabriolet (E30)	318i	1990/9 - 1993/10	83 KW / 113 PS
BMW	3er Cabriolet (E30)	320i	1987/7 - 1993/10	93 KW / 126 PS
BMW	3er Cabriolet (E30)	320i	1986/5 - 1993/11	95 KW / 129 PS
BMW	3er Cabriolet (E30)	325i	1987/8 - 1993/11	125 KW / 170 PS
BMW	3er Cabriolet (E30)	325i	1985/12 - 1987/12	126 KW / 171 PS
BMW	3er Cabriolet (E30)	M3 2.3	1988/6 - 1991/6	143 KW / 195 PS
BMW	3er Touring (E30)	316i	1991/9 - 1994/6	73 KW / 100 PS
BMW	3er Touring (E30)	316i	1991/9 - 1994/6	75 KW / 102 PS
BMW	3er Touring (E30)	318i	1989/4 - 1994/6	83 KW / 113 PS
BMW	3er Touring (E30)	318i	1987/9 - 1991/6	85 KW / 115 PS
BMW	3er Touring (E30)	320i	1988/1 - 1991/12	95 KW / 129 PS
BMW	3er Touring (E30)	324td	1988/1 - 1993/6	85 KW / 115 PS
BMW	3er Touring (E30)	325i	1987/7 - 1993/3	125 KW / 170 PS
BMW	3er Touring (E30)	325i X	1988/6 - 1993/10	125 KW / 170 PS
