Outside temperature display for MERCEDES 190 190E W201 speedometer ATA 6-pin

Outside temperature display for MERCEDES 190 190E W201 speedometer ATA 6-pin

Item number: 5202

Reference numbers: 2015420611, 2015423667, 2015424101, 2015425306, 2015429966, 2015433623, 2015434523, PW

32,90 €

incl. 19% VAT , plus

RRP: 36,90 €

receive with purchase 64 Bonuspoints

Available immediately
Order now - shipping will take place on the second working day after next.
if you order within
hours and minutes
.

Delivery time: 2 - 3 working days (DE - different for other countries)

Available immediately
Order now - shipping will take place on the second working day after next.
if you order within
hours and minutes
.

Delivery time: 2 - 3 working days (DE - different for other countries)

Outside temperature display for MERCEDES 190 190E W201 speedometer ATA 6-pin

Exactly true to the original design

Description:
This offer includes a complete kit for repairing the display of your Mercedes W201 outside temperature display. The outside temperature display was also used in other Mercedes models from the period, and the display is also suitable here. It shows °C and not °F.

After many years of use and frequent temperature fluctuations, the seal of the LCD elements eventually fails and the display "leaks". Although the overall component is still fully functional, the numbers and symbols can no longer be fully read. Aging of the associated conductive contact rubbers is also a common reason for incomplete readability of the displays, even if the liquid crystal display (LCD for short) is still fully intact. As a "do-it-yourself" solution, even hobbyists can repair the display themselves using the components offered here, along with our support and illustrated instructions. No complex assembly or soldering is required for the repair.

Because aging displays are a general problem, we generally advise against purchasing used, "still intact" components. Here, too, it's only a matter of time before the display no longer functions. Replacing your own display is therefore always the cheaper and best option in the long run.

As a manufacturer of these components, we can offer wholesalers and retailers, as well as workshops and repair shops, special conditions for larger quantities. We are happy to answer any questions you may have.

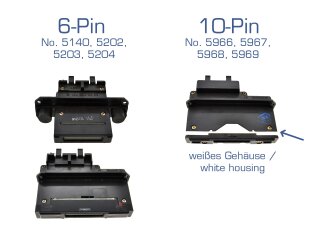

Please note that there are different housing shapes, part numbers, and two different numbers of contacts on the displays. The housing shape, the associated vehicle, or the part number are NOT a reliable indicator of the variant used. The 6-pin display is installed in 90% of cases. In rare cases, however, the 10-pin LCD offered here is also available. You can recognize the 10-pin version by the white housing element. No matter what design the housing has or which vehicle it was installed in, if your housing also has a white plastic part, then this 10-pin display is suitable for you.

No programming or anything similar is required after the repair.

gearworks is a brand of partworks GmbH. It stands for high-quality spare parts in the field of vehicle electronics. partworks specializes in reverse engineering and the distribution of spare parts for Porsche. Partworks places particular emphasis on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As a specialist company for classic car spare parts, we are aware of our customers' quality expectations. Therefore, you can be sure that with subsequent developments, the requirements are based very closely on the original and in some cases even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Last but not least, our DIN ISO 9001-certified quality management system confirms the thoroughness of our work. If you see the manufacturer's designation "partworks," this either indicates an in-house development or an item from the original equipment manufacturer (OE quality). Original equipment manufacturers are those manufacturers who supplied the original product to the vehicle manufacturer but are not permitted to operate under their own brand on the open market.

Reference numbers:
2015420611
2015423667
2015424101
2015425306
2015429966
2015433623
2015434523

Scope of delivery:

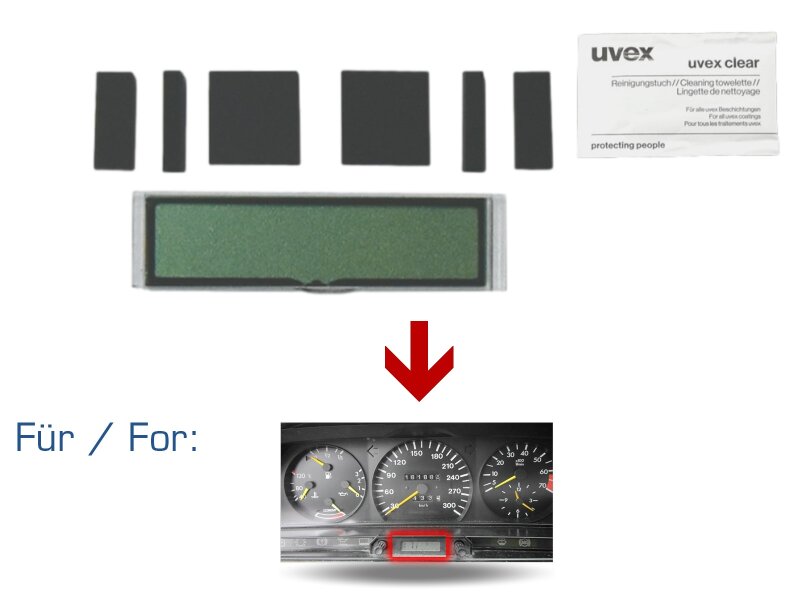

Display, cleaning cloth, conductive rubbers, instructions

Suitable for:
Mercedes W201

Brand	Model	Type	Year of construction	Motor
Mercedes-Benz	190 (W201)	2.0	1982/10 - 1984/10	66 KW / 90 PS
Mercedes-Benz	190 (W201)	2.0	1986/1 - 1990/5	75 KW / 102 PS
Mercedes-Benz	190 (W201)	2.0	1983/8 - 1990/5	77 KW / 105 PS
Mercedes-Benz	190 (W201)	2.3	1987/9 - 1988/9	97 KW / 132 PS
Mercedes-Benz	190 (W201)	2.3 E	1982/10 - 1988/9	100 KW / 136 PS
Mercedes-Benz	190 (W201)	2.6	1982/10 - 1988/9	118 KW / 160 PS
Mercedes-Benz	190 (W201)	D 2.0	1983/8 - 1989/8	53 KW / 72 PS
Mercedes-Benz	190 (W201)	D 2.0	1989/8 - 1993/8	55 KW / 75 PS
Mercedes-Benz	190 (W201)	D 2.5	1985/4 - 1993/8	66 KW / 90 PS
Mercedes-Benz	190 (W201)	D 2.5	1989/8 - 1993/8	69 KW / 94 PS
Mercedes-Benz	190 (W201)	E 1.8	1990/4 - 1993/8	80 KW / 109 PS
Mercedes-Benz	190 (W201)	E 2.0	1985/2 - 1986/12	83 KW / 113 PS
Mercedes-Benz	190 (W201)	E 2.0	1985/2 - 1986/12	85 KW / 116 PS
Mercedes-Benz	190 (W201)	E 2.0	1985/1 - 1993/8	87 KW / 118 PS
Mercedes-Benz	190 (W201)	E 2.0	1982/10 - 1993/6	90 KW / 122 PS
Mercedes-Benz	190 (W201)	E 2.0	1982/10 - 1993/6	93 KW / 126 PS
Mercedes-Benz	190 (W201)	E 2.3	1986/9 - 1991/8	97 KW / 132 PS
Mercedes-Benz	190 (W201)	E 2.3	1986/10 - 1993/8	100 KW / 136 PS
Mercedes-Benz	190 (W201)	E 2.3-16	1985/9 - 1987/12	125 KW / 170 PS
Mercedes-Benz	190 (W201)	E 2.3-16	1985/9 - 1988/8	130 KW / 177 PS
Mercedes-Benz	190 (W201)	E 2.3-16	1984/4 - 1987/1	136 KW / 185 PS
Mercedes-Benz	190 (W201)	E 2.5-16	1988/9 - 1993/8	150 KW / 204 PS
Mercedes-Benz	190 (W201)	E 2.6	1986/9 - 1993/8	118 KW / 160 PS
Mercedes-Benz	190 (W201)	E 2.6	1986/9 - 1989/12	122 KW / 166 PS
Mercedes-Benz	190 (W201)	E Evolution 2.5-16	1989/3 - 1993/8	143 KW / 194 PS
Mercedes-Benz	190 (W201)	E Evolution II 2.5	1990/5 - 1993/8	173 KW / 235 PS
Mercedes-Benz	190 (W201)	Turbo D 2.5	1988/2 - 1993/8	90 KW / 122 PS
Mercedes-Benz	190 (W201)	Turbo D 2.5	1988/2 - 1993/8	93 KW / 126 PS
