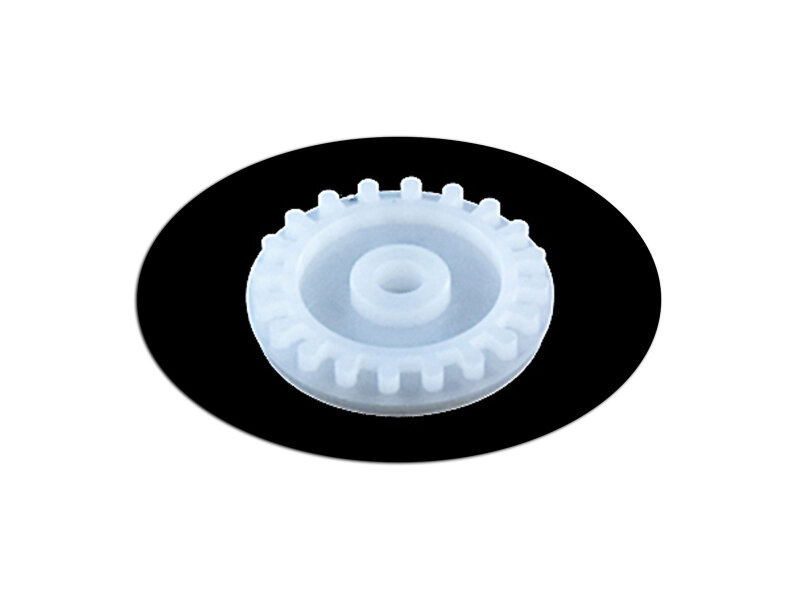

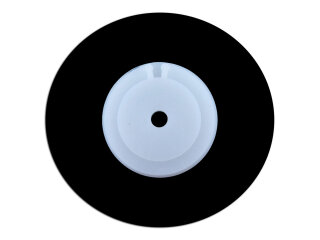

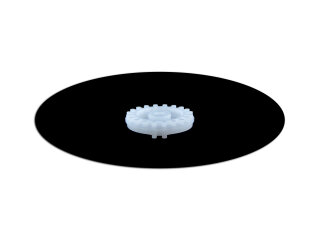

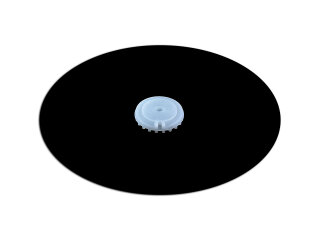

Speedometer gear for mechanical VDO odometers, roller gear D2.2

Speedometer gear for mechanical VDO odometers, roller gear D2.2

Item number: 2014

21,90 €

incl. 19% VAT , plus

RRP: 25,90 €

Available immediately
Shipping today
within
13 h and 54 min

Delivery time: 1 - 3 working days (DE)

pcs

Available immediately
Shipping today
within
13 h and 54 min

Delivery time: 1 - 3 working days (DE)

Speedometer gear for mechanical VDO odometers, roller gear D2.2

Description:
There are two weak points in the odometers of mechanical speedometers:
The first is the gear at the very end of the odometer shaft.
The second is this roller gear: It very often develops a fine hairline crack radially. This means it is no longer firmly seated on the shaft and can be turned with a small screwdriver.

There are three different versions:
A) Overall width 4.5 mm; tooth width 1.3 mm
B) Overall width 5.4 mm; tooth width 2.2 mm
C) Overall width 6.0 mm; tooth width 3.0 mm

Simply measure the tooth width of the roller gear. We have all three versions in stock and usually available online.
The variant is specified as D1.3, D2.2, or D3.0 in each auction title.

The gears are suitable for allmechanicalVDO speedometers from various vehicle makes. Unfortunately, we cannot provide the exact dimensions for all models, so please verify by measuring.

Note:
We strongly recommend also replacing the other gear (driven by the worm gear) if you have already disassembled and opened the speedometer. Check the shop for the correct sizes. They are called M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M21, and M25, and differ in the number of teeth.

If you disassemble the speedometer beforehand, please note that the speedometer needle shaft is very delicate. Grasp the speedometer needle in the middle and turn it counterclockwise, pulling gently as you do so. Friction is all that holds the needle on the shaft.

Brand Information:
Partworks GmbH is a German company specializing in the reverse engineering and distribution of spare parts for Porsche. Particular emphasis is placed on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As specialists in classic car spare parts, we are aware of our customers' high quality standards. Therefore, you can be sure that our redesigned parts meet the exact specifications of the original and, in some cases, even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Finally, our DIN ISO 9001-certified quality management system confirms the thoroughness of our work. If you see the manufacturer's designation "partworks," this indicates either an in-house development or an original equipment manufacturer (OE) part. Original equipment manufacturers are those who supplied the original product to the vehicle manufacturer but cannot sell it under their own brand on the open market.

Scope of delivery:
see illustration

Suitable for:
General

Product safety:

Manufacturer information:

Name:partworks GmbH

Street:Otto-Stadler-Str. 9c

City:33100 Paderborn

State:Nordrhein-Westfalen

Country:Deutschland

Email:info@partworks.de

Website:https://partworks.de

Brand	Model	Type	Year of construction	Motor
Audi	100 (431, 433, 434)	1.6	1976/8 - 1982/7	63 KW / 85 PS
Audi	100 (431, 433, 434)	1.9	1980/8 - 1984/8	74 KW / 100 PS
Audi	100 (431, 433, 434)	2.0	1976/6 - 1978/8	85 KW / 115 PS
Audi	100 (431, 433, 434)	2.0 D	1978/8 - 1982/7	51 KW / 70 PS
Audi	100 (431, 433, 434)	2.1	1977/10 - 1982/7	85 KW / 115 PS
Audi	100 (431, 433, 434)	2.1	1977/3 - 1982/7	100 KW / 136 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.6	1975/1 - 1976/7	63 KW / 85 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1968/11 - 1971/11	59 KW / 80 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1971/9 - 1974/7	63 KW / 85 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1968/11 - 1971/11	66 KW / 90 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.8	1970/10 - 1976/7	74 KW / 100 PS
Audi	100 (801, 803, 805, 807, 811, 813, F104)	1.9	1971/9 - 1976/7	82 KW / 112 PS
Audi	100 Avant (435, 436)	1.6	1977/7 - 1983/2	63 KW / 85 PS
Audi	100 Avant (435, 436)	1.9	1980/8 - 1982/7	74 KW / 100 PS
Audi	100 Avant (435, 436)	2.0	1977/8 - 1980/7	85 KW / 115 PS
Audi	100 Avant (435, 436)	2.0 D	1978/8 - 1983/2	51 KW / 70 PS
Audi	100 Avant (435, 436)	2.1	1977/7 - 1983/2	85 KW / 115 PS
Audi	100 Avant (435, 436)	2.1	1977/7 - 1983/2	100 KW / 136 PS
Audi	100 Coupe (817)	1.9	1971/8 - 1976/12	82 KW / 112 PS
Audi	100 Coupe (817)	1.9	1970/7 - 1971/7	85 KW / 115 PS
Audi	60 (613, 615)	1.5	1968/9 - 1972/8	40 KW / 55 PS
Audi	60 (613, 615)	1.5	1968/9 - 1972/8	48 KW / 65 PS
Audi	60 Variant (613, 615)	1.5	1968/9 - 1972/8	40 KW / 55 PS
Audi	60 Variant (613, 615)	1.5	1968/9 - 1972/8	48 KW / 65 PS
Audi	75 (613, 615)	1.7	1968/9 - 1972/8	55 KW / 75 PS
Audi	75 Variant (615)	1.7	1968/9 - 1972/8	55 KW / 75 PS
Audi	80 (80, 82)	1.3	1972/5 - 1978/7	40 KW / 55 PS
Audi	80 (80, 82)	1.3	1972/5 - 1978/7	44 KW / 60 PS
Audi	80 (80, 82)	1.5	1972/5 - 1975/8	55 KW / 75 PS
Audi	80 (80, 82)	1.5	1972/5 - 1976/7	63 KW / 85 PS
Audi	80 (80, 82)	1.6	1975/9 - 1978/7	55 KW / 75 PS
Audi	80 (80, 82)	1.6	1975/9 - 1978/7	63 KW / 85 PS
Audi	80 (80, 82)	1.6 GT	1973/9 - 1976/7	74 KW / 100 PS
Audi	80 (80, 82)	1.6 GTE	1976/1 - 1978/7	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.3	1978/9 - 1981/7	40 KW / 55 PS
Audi	80 (811, 813, 814, 819, 853)	1.3	1978/9 - 1986/7	44 KW / 60 PS
Audi	80 (811, 813, 814, 819, 853)	1.3	1978/9 - 1981/7	44 KW / 60 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1981/7	51 KW / 70 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1986/2 - 1986/7	54 KW / 73 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1987/3	55 KW / 75 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1986/7	55 KW / 75 PS
Audi	80 (811, 813, 814, 819, 853)	1.6	1978/8 - 1983/2	63 KW / 85 PS
Audi	80 (811, 813, 814, 819, 853)	1.6 D	1980/8 - 1986/8	40 KW / 54 PS
Audi	80 (811, 813, 814, 819, 853)	1.6 GLE	1978/8 - 1982/7	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.6 TD	1981/8 - 1986/5	51 KW / 70 PS
Audi	80 (811, 813, 814, 819, 853)	1.8	1986/2 - 1986/7	65 KW / 88 PS
Audi	80 (811, 813, 814, 819, 853)	1.8	1983/1 - 1986/8	66 KW / 90 PS
Audi	80 (811, 813, 814, 819, 853)	1.8	1983/8 - 1986/8	68 KW / 93 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 CC quattro	1984/8 - 1986/8	66 KW / 90 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 CC quattro	1985/8 - 1986/8	68 KW / 93 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE	1985/8 - 1986/7	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE	1984/10 - 1986/8	82 KW / 112 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE quattro	1985/3 - 1986/8	81 KW / 110 PS
Audi	80 (811, 813, 814, 819, 853)	1.8 GTE quattro	1984/8 - 1986/8	82 KW / 112 PS
Audi	80 (811, 813, 814, 819, 853)	1.9 CD-5S	1981/9 - 1983/7	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.0	1983/10 - 1984/9	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.0 quattro	1983/10 - 1984/9	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.2	1980/10 - 1983/7	85 KW / 115 PS
Audi	80 (811, 813, 814, 819, 853)	2.2 quattro	1982/8 - 1984/7	96 KW / 131 PS
Audi	80 (811, 813, 814, 819, 853)	2.2 quattro	1982/8 - 1984/7	100 KW / 136 PS
Audi	80 (811, 813, 814, 819, 853)	2.2 quattro	1982/8 - 1984/7	100 KW / 136 PS
Audi	90 (813, 814, 853)	1.6 TD	1985/10 - 1987/1	51 KW / 70 PS
Audi	90 (813, 814, 853)	2.0	1986/3 - 1987/3	83 KW / 113 PS
Audi	90 (813, 814, 853)	2.0	1984/10 - 1987/3	85 KW / 115 PS
Audi	90 (813, 814, 853)	2.0 quattro	1984/8 - 1986/8	85 KW / 116 PS
Audi	90 (813, 814, 853)	2.2	1985/1 - 1987/3	85 KW / 115 PS
Audi	90 (813, 814, 853)	2.2	1984/10 - 1987/3	100 KW / 136 PS
Audi	90 (813, 814, 853)	2.2 e quattro	1985/8 - 1987/3	88 KW / 120 PS
Audi	90 (813, 814, 853)	2.2 e quattro	1984/11 - 1987/3	100 KW / 136 PS
Audi	A6 (4B2, 4B4)	2.7 T quattro	1997/12 - 2005/1	169 KW / 230 PS
Audi	A6 (4B2, 4B4)	2.8 quattro	1998/1 - 2000/4	132 KW / 180 PS
Audi	F103 (613, 615)	1.7	1965/8 - 1968/8	53 KW / 72 PS
Audi	F103 Variant (613, 615)	1.7	1966/4 - 1968/8	53 KW / 72 PS
Mercedes-Benz	190 (W201)	2.0	1982/10 - 1984/10	66 KW / 90 PS
Mercedes-Benz	190 (W201)	2.0	1986/1 - 1990/5	75 KW / 102 PS
Mercedes-Benz	190 (W201)	2.0	1983/8 - 1990/5	77 KW / 105 PS
Mercedes-Benz	190 (W201)	2.3	1987/9 - 1988/9	97 KW / 132 PS
Mercedes-Benz	190 (W201)	2.3 E	1982/10 - 1988/9	100 KW / 136 PS
Mercedes-Benz	190 (W201)	2.6	1982/10 - 1988/9	118 KW / 160 PS
Mercedes-Benz	190 (W201)	D 2.0	1983/8 - 1989/8	53 KW / 72 PS
Mercedes-Benz	190 (W201)	D 2.0	1989/8 - 1993/8	55 KW / 75 PS
Mercedes-Benz	190 (W201)	D 2.5	1985/4 - 1993/8	66 KW / 90 PS
Mercedes-Benz	190 (W201)	D 2.5	1989/8 - 1993/8	69 KW / 94 PS
Mercedes-Benz	190 (W201)	E 1.8	1990/4 - 1993/8	80 KW / 109 PS
Mercedes-Benz	190 (W201)	E 2.0	1985/2 - 1986/12	83 KW / 113 PS
Mercedes-Benz	190 (W201)	E 2.0	1985/2 - 1986/12	85 KW / 116 PS
Mercedes-Benz	190 (W201)	E 2.0	1985/1 - 1993/8	87 KW / 118 PS
Mercedes-Benz	190 (W201)	E 2.0	1982/10 - 1993/6	90 KW / 122 PS
Mercedes-Benz	190 (W201)	E 2.0	1982/10 - 1993/6	93 KW / 126 PS
Mercedes-Benz	190 (W201)	E 2.3	1986/9 - 1991/8	97 KW / 132 PS
Mercedes-Benz	190 (W201)	E 2.3	1986/10 - 1993/8	100 KW / 136 PS
Mercedes-Benz	190 (W201)	E 2.3-16	1985/9 - 1987/12	125 KW / 170 PS
Mercedes-Benz	190 (W201)	E 2.3-16	1985/9 - 1988/8	130 KW / 177 PS
Mercedes-Benz	190 (W201)	E 2.3-16	1984/4 - 1987/1	136 KW / 185 PS
Mercedes-Benz	190 (W201)	E 2.5-16	1988/9 - 1993/8	150 KW / 204 PS
Mercedes-Benz	190 (W201)	E 2.6	1986/9 - 1993/8	118 KW / 160 PS
Mercedes-Benz	190 (W201)	E 2.6	1986/9 - 1989/12	122 KW / 166 PS
Mercedes-Benz	190 (W201)	E Evolution 2.5-16	1989/3 - 1993/8	143 KW / 194 PS
Mercedes-Benz	190 (W201)	E Evolution II 2.5	1990/5 - 1993/8	173 KW / 235 PS
Mercedes-Benz	190 (W201)	Turbo D 2.5	1988/2 - 1993/8	90 KW / 122 PS
Mercedes-Benz	190 (W201)	Turbo D 2.5	1988/2 - 1993/8	93 KW / 126 PS
Mercedes-Benz	SL (R107)	280 SL	1976/6 - 1981/9	130 KW / 177 PS
Mercedes-Benz	SL (R107)	280 SL	1974/8 - 1985/7	136 KW / 185 PS
Mercedes-Benz	SL (R107)	350 SL	1971/5 - 1980/2	143 KW / 195 PS
Mercedes-Benz	SL (R107)	380 SL	1980/9 - 1981/8	160 KW / 218 PS
Mercedes-Benz	SL (R107)	450 SL	1975/9 - 1980/10	160 KW / 218 PS
Mercedes-Benz	SL (R107)	450 SL	1972/10 - 1980/10	165 KW / 224 PS
Porsche	924	2.0	1975/11 - 1989/8	92 KW / 125 PS
Porsche	924	2.0 Carrera GT	1980/6 - 1986/10	154 KW / 209 PS
Porsche	924	2.0 turbo	1978/11 - 1980/6	125 KW / 170 PS
Porsche	924	2.0 turbo	1980/6 - 1986/10	130 KW / 177 PS
Porsche	924	2.5 S	1985/9 - 1987/7	110 KW / 150 PS
Porsche	924	2.5 S	1987/8 - 1988/7	118 KW / 160 PS
Porsche	944	2.5	1981/6 - 1987/7	120 KW / 163 PS
VW	1500,1600 (31)	1.5	1961/4 - 1973/7	33 KW / 45 PS
VW	1500,1600 (31)	1.5 S	1963/8 - 1965/7	40 KW / 54 PS
VW	1500,1600 (31)	1.6	1965/8 - 1973/7	40 KW / 54 PS
VW	1500,1600 (31)	1.6 L	1964/7 - 1973/7	37 KW / 50 PS
VW	1500,1600 (31)	1.6 TL	1965/8 - 1973/7	40 KW / 54 PS
VW	1500,1600 Schrägheck (31)	1.5 L	1968/7 - 1973/7	33 KW / 45 PS
VW	1500,1600 Schrägheck (31)	1.6 TL	1965/8 - 1973/7	40 KW / 54 PS
VW	1500,1600 Variant (36)	1.5	1961/4 - 1973/7	33 KW / 45 PS
VW	1500,1600 Variant (36)	1.5 S	1963/8 - 1965/7	40 KW / 54 PS
VW	1500,1600 Variant (36)	1.6 L	1965/8 - 1973/7	40 KW / 54 PS

Assembly:	Instruments
Product Group:	Speedometer gear
