Speedometer gears for three-part electronic drive with 48x15 SET

Speedometer gears for three-part electronic drive with 48x15 SET

Item number: 2232

49,90 €

incl. 19% VAT , plus

RRP: 53,90 €

Available immediately
Shipping will take place next working day.

Delivery time: 1 - 3 working days (DE)

pcs

Available immediately
Shipping will take place next working day.

Delivery time: 1 - 3 working days (DE)

INCLUDED IN THE SET

partworks

E3 48x15 gear for VDO speedometer instrument cluster odometer repair

Available immediately
Delivery time: 1 - 3 working days (DE)

21,90 € *

partworks

E2 gear speedometer for VDO instrument cluster odometer repair

Available immediately
Delivery time: 1 - 3 working days (DE)

19,90 € *

partworks

E1 gear speedometer for VDO instrument cluster odometer repair

Available immediately
Delivery time: 1 - 3 working days (DE)

21,90 € *

Speedometer gears for three-part electronic drive with 48x15 SET

Excellent workmanship quality

Description:
In the VDO instruments, the odometer (not the speedometer) is reduced over 2 stages, i.e. h. Each drive consists of 3 gears: E1, E2 and E3.

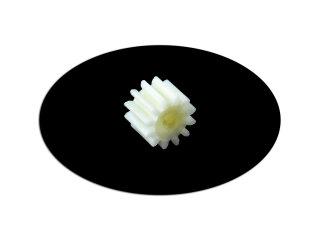

- The driving gear E1 is identical in all of them and has 12 teeth.

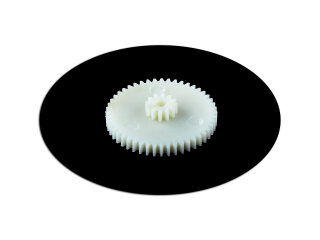

- The gear E2 (Double gear) is also identical on all of them, flat on the back (no collar) and has 48x12 teeth.
- The gear E3 (double gear) has a collar on the back and exists in 9 variants with different numbers of teeth.

For a repair, it is recommended to replace all 3 gears:
After removal, please count the teeth of the E3 gear and order the corresponding variant in the shop. We have only provided separate set offers for clearly known assignments (vehicle model to gear variant).

The following variants of the double gear E3 exist:
48x12
48x13
48x14
48x15
48x16
48x17
48x18
48x19
48x21

You will find the exact description in the respective offer title. Use the search function in the shop and search for E1, E2 or E3.

Advantages:
Our gears are injection molded from high-quality thermoplastic: This enables very good dimensional accuracy and an involute shape of the teeth, which run particularly gently on the partner gear.
We have all gears for VDO and other instrument manufacturers in our range and can therefore deliver additional supplies or exchange incorrectly ordered gears if necessary.

Notes:
Buying a used speedometer may save you having to repair it, but it carries the risk that the gear will break in the near future. Storage times and cold temperatures in particular cause additional damage to the gears.
If you have dismantled the speedometer, we also recommend replacing the light bulbs. These noticeably lose performance over the years. They are available at every car dealership and accessories store.

If you disassemble the speedometer in advance, please note that the shaft of the speedometer needle is very sensitive. Grab the speedometer needle in the middle and turn it counterclockwise. Pull lightly. Friction is everything that keeps the needle on the shaft.

Brand information:
partworks GmbH is a German company that specializes in reverse engineering and the distribution of spare parts for Porsche. Particular emphasis is placed on high quality and excellent service. More than 130,000 car fans worldwide are already satisfied customers of the Paderborn-based company. As a specialist company for classic car spare parts, we are aware of the quality requirements of our customers. Therefore, when it comes to subsequent developments, you can be sure that the requirements are very close to the original and in some cases even exceed them. With our own engineering department and internal testing, we can ensure the reliability of our products. Last but not least, our DIN ISO 9001 certified quality management confirms the thoroughness of our work. If you see the manufacturer information partworks, it means either an in-house development or an item from the original manufacturer (OE quality). Original equipment manufacturers are those manufacturers who have supplied the original product to the vehicle manufacturer but cannot be active in free trade under their own brand.

Scope of delivery:
see illustration

Suitable for:
Various VDO speedometers

Product safety:

Manufacturer information:

Name:partworks GmbH

Street:Otto-Stadler-Str. 9c

City:33100 Paderborn

State:Nordrhein-Westfalen

Country:Deutschland

Email:info@partworks.de

Website:https://partworks.de
