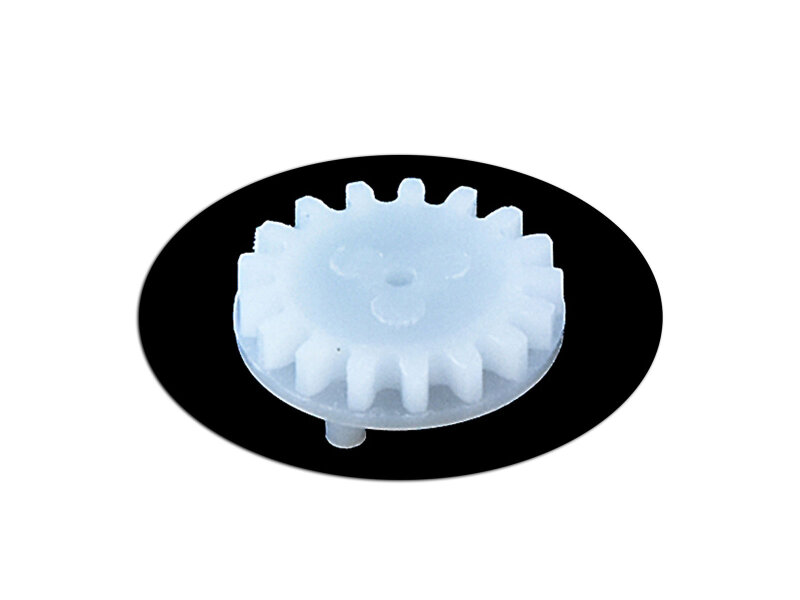

17-K Gear for VDO Odometer/Instrument Clusters, Disc Gear

Description:
This two-component gear is a common source of failure in VDO odometers of various vehicles. The affected VDO drives are installed worldwide in many models of numerous European, Japanese, American, and Australian brands.

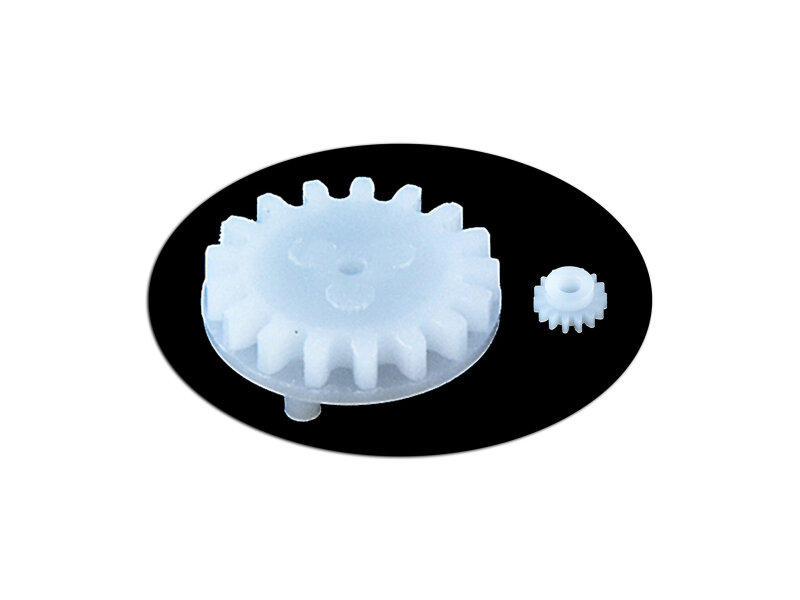

The drive consists of two gears:
1. A standard gear in the variantsE15, E20, E25(15, 20, or 25 teeth)
2. A disc gear which varies in both the number of teeth and the disc size.

The disc gear is available in the following 8 variants:

12-K= 12 teeth onKsmall disc (disc diameter ~15.5mm)
15-K= 15 teeth onKsmall disc (disc diameter ~15.5mm)
15-M= 15 teeth onMmedium disc (disc diameter ~17.8mm)
15-G= 15 teeth onGlarge disc (disc diameter ~21.8mm)
16-K= 16 teeth onKSmall disc (disc diameter ~15.5mm)
16-M= 16 teeth onMMedium disc (disc diameter ~17.8mm)
17-K= 17 teeth onKSmall disc (disc diameter ~15.5mm)
17-M= 17 teeth onMMedium disc (disc diameter ~17.8mm)

Before purchasing, please remove the instrument cluster and inspect the gears to determine the correct version for your vehicle.
Use the search function in the shop and search for the gear designations (e.g., 12-K or E15).

Which gear you are purchasing with this offer can be found in the offer title.

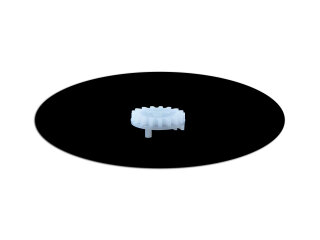

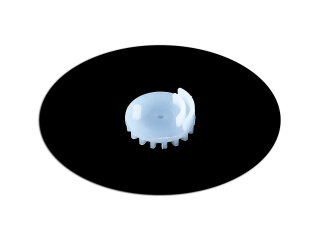

The photo may show the front and back; the offer includes 1 gear.

Notes:
We stock a wide variety of speedometer gears for VDO, Motometer, and other speedometers and instruments. Unfortunately, it is not possible to determine the exact combination (vehicle model to gear variant) for every model; however, we have separate offers in our shop for the most common combinations.
Buying a used speedometer might save you the cost of repair, but it carries the risk that the gear will break soon. Storage and cold temperatures are particularly damaging to the gears.
If you have already disassembled the speedometer, we also recommend replacing the bulbs. These lose a noticeable amount of brightness over the years. They are available at any car dealership or auto parts store.

Advantages:
Our gears are injection-molded from high-quality thermoplastic: This ensures excellent dimensional accuracy and an involute tooth shape that runs particularly smoothly against the mating gear.

If you disassemble the speedometer beforehand, please note that the speedometer needle shaft is very delicate. Grip the speedometer needle in the middle and turn it counterclockwise, pulling gently. Friction is all that holds the needle on the shaft.

Partworks GmbH is a German company specializing in the reverse engineering and distribution of spare parts for Porsche. We place particular emphasis on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As specialists in classic car spare parts, we are aware of our customers' quality requirements. Therefore, you can be sure that our redesigned parts meet the exact specifications of the original and, in some cases, even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Our DIN ISO 9001-certified quality management system further confirms the thoroughness of our work. If you see the manufacturer's designation "partworks," this indicates either an in-house development or an original equipment manufacturer (OEM) part (OE quality). OEMs are those manufacturers who supplied the original product to the vehicle manufacturer but cannot sell it under their own brand on the open market.

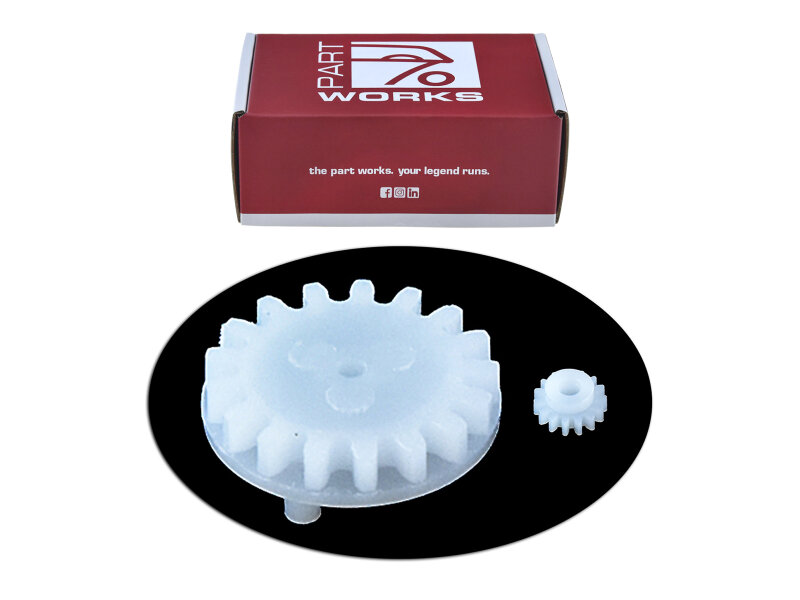

Scope of delivery:
see illustration

Suitable for:
General

Brand	Model	Type	Year of construction	Motor
Porsche	964	3.3 turbo	1990/8 - 1993/9	235 KW / 320 PS
Porsche	964	3.3 turbo S	1991/6 - 1992/12	261 KW / 355 PS
Porsche	964	3.6 Carrera	1989/7 - 1993/9	184 KW / 250 PS
Porsche	964	3.6 Carrera 4	1988/12 - 1993/9	184 KW / 250 PS
Porsche	964	3.6 Carrera RS	1991/6 - 1993/9	191 KW / 260 PS
Porsche	964	3.6 turbo	1993/1 - 1993/9	265 KW / 360 PS
Porsche	964 Cabriolet	3.6 Carrera	1989/7 - 1994/5	184 KW / 250 PS
Porsche	964 Cabriolet	3.6 Carrera 4	1989/5 - 1994/5	184 KW / 250 PS
Porsche	993	3.6 Carrera	1993/10 - 1995/8	200 KW / 272 PS
Porsche	993	3.6 Carrera	1995/8 - 1997/9	210 KW / 286 PS
Porsche	993	3.6 Carrera 4	1994/7 - 1995/8	200 KW / 272 PS
Porsche	993	3.6 Carrera 4	1995/8 - 1997/9	210 KW / 286 PS
Porsche	993	3.6 turbo 4	1995/3 - 1997/9	300 KW / 408 PS
Porsche	993	3.6 turbo GT2	1995/3 - 1997/9	316 KW / 430 PS
Porsche	993	3.6 turbo GT2 4	1995/8 - 1997/9	316 KW / 430 PS
Porsche	993	3.6 turbo GT2 4	1997/6 - 1997/9	331 KW / 450 PS
Porsche	993	3.8 Carrera	1995/6 - 1997/9	210 KW / 286 PS
Porsche	993	3.8 Carrera 4	1995/6 - 1997/9	210 KW / 286 PS
Porsche	993	3.8 Carrera 4	1995/8 - 1997/9	221 KW / 300 PS
Porsche	993	3.8 Carrera RS	1995/6 - 1997/9	221 KW / 300 PS
Porsche	993 Cabriolet	3.6 Carrera	1994/7 - 1995/8	200 KW / 272 PS
Porsche	993 Cabriolet	3.6 Carrera	1995/8 - 1997/9	210 KW / 286 PS
Porsche	993 Cabriolet	3.6 Carrera 4	1994/7 - 1995/8	200 KW / 272 PS
Porsche	993 Cabriolet	3.6 Carrera 4	1995/8 - 1997/9	210 KW / 286 PS
Porsche	993 Cabriolet	3.8 Carrera	1995/6 - 1997/9	210 KW / 286 PS
Porsche	993 Cabriolet	3.8 Carrera	1995/8 - 1997/9	221 KW / 301 PS
Porsche	993 Cabriolet	3.8 Carrera 4	1995/6 - 1997/9	210 KW / 286 PS
Porsche	993 Cabriolet	3.8 Carrera 4	1995/8 - 1997/9	221 KW / 301 PS
Porsche	993 Targa	3.6 Carrera	1995/8 - 1997/9	210 KW / 286 PS
Porsche	993 Targa	3.8 Carrera	1996/5 - 1997/9	221 KW / 301 PS
