Instrument Cluster Gear for PORSCHE 964 Speedometer Repair E20 + 15-M Var. C SET
Tried and Tested Components
Description:
If the odometer/trip odometer on your vehicle has failed, this gear is usually the cause. To avoid duplicate installation work, we recommend replacing these two gears in pairs.
Dimensions:

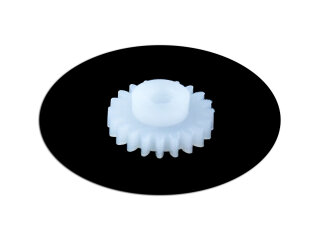

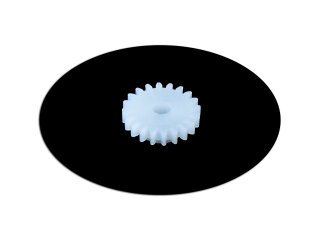

Diameter E20 = 8.60 mm (20 teeth)

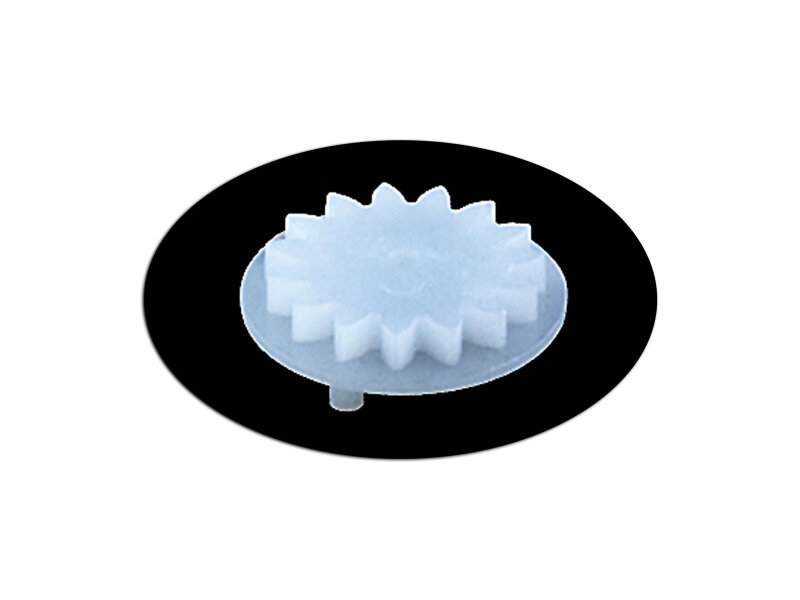

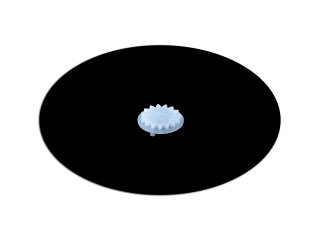

Disc gear 15-M = 17.6 mm (15 teeth)
For comparison:
Diameter E15 = 6.90 mm (15 teeth)
Possible combinations of the disc gear: E15 with 15-KorE15 with 17-K
Note:
The 964 can be fitted with either an E15 OR an E20. The two possible E15 sets are also available in our shop.
Unfortunately, the assignment between engine type/transmission type/year of manufacture/model and the gear type is so complex that only counting the teeth provides certainty. Therefore, please count the teeth before purchasing.
Service:
We stock over 100 gear variants and can supply the appropriate gears as needed!
+ All alternative sizes always in stock
+ Fast exchange service in case of size discrepancies
For repairs, we will send you an illustrated repair manual (German/English) via email.
Quality:
Our gears are manufactured using a complex and faithful injection molding process and are not 3D-printed in-house creations. We work with a manufacturer specializing in the production of plastic gears and a global market leader in repair solutions.
The involute tooth geometry is maintained; this is the only way to ensure low-friction sliding of the tooth flanks between the gear pairs.
We use the thermoplastic material Celron with graphite additives. These ensure low friction and wear-free operation.
If you disassemble the speedometer beforehand, please note that the speedometer needle shaft is very delicate. Grip the speedometer needle in the middle and turn it counterclockwise, pulling gently. Friction is all that holds the needle on the shaft.
Partworks GmbH is a German company specializing in the reverse engineering and distribution of spare parts for Porsche. Particular emphasis is placed on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As specialists in classic car spare parts, we are aware of our customers' quality requirements. Therefore, you can be sure that our redesigned parts meet the exact specifications of the original and, in some cases, even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Last but not least, our DIN ISO 9001-certified quality management system confirms the thoroughness of our work. If you see the manufacturer's designation "partworks," this indicates either an in-house development or an original equipment manufacturer (OE) part. Original equipment manufacturers are those who supplied the original product to the vehicle manufacturer but cannot sell it under their own brand on the open market. Reference numbers: Please note, this product is a component of the part with the following OE number(s). Our item is not listed separately with its own OE number as a spare part by the vehicle manufacturer. For ease of finding and identification, the OE numbers of the corresponding assembly groups are listed here:
964641202X
964641301X
96464131500, 964.641.315.00, 964 641 315 00
964641516X
964641536X
99364170100, 993.641.701.00, 993 641 701 00
965641321BX, 965.641.321.BX, 965 641 321 BX
965641321CX, 965.641.321.CX, 965 641 321 CX
993641546X
96464120200, 964.641.202.00, 964 641 202 00
96464130100, 964.641.301.00, 964 641 301 00
96464151600, 964.641.516.00, 964 641 516 00
96464153600, 964.641.536.00, 964 641 536 00
96464170100, 964.641.701.00, 964 641 701 00
96564132102, 965.641.321.02, 965 641 321 02
96564132100, 965.641.321.00, 965 641 321 00
96564132103, 965.641.321.03, 965 641 321 03
96564132101, 965.641.321.01, 965 641 321 01
99364154600, 993.641.546.00, 993 641 546 00
96564153600, 965.641.536.00, 965 641 536 00
Reference numbers:
964641202X
964641301X
96464131500, 964.641.315.00, 964 641 315 00
964641516X
964641536X
99364170100, 993.641.701.00, 993 641 701 00
965641321BX, 965.641.321.BX, 965 641 321 BX
965641321CX, 965.641.321.CX, 965 641 321 CX
993641546X
96464120200, 964.641.202.00, 964 641 202 00
96464130100, 964.641.301.00, 964 641 301 00
96464151600, 964.641.516.00, 964 641 516 00
96464153600, 964.641.536.00, 964 641 536 00
96464170100, 964.641.701.00, 964 641 701 00
96564132102, 965.641.321.02, 965 641 321 02
96564132100, 965.641.321.00, 965 641 321 00
96564132103, 965.641.321.03, 965 641 321 03
96564132101, 965.641.321.01, 965 641 321 01
99364154600, 993.641.546.00, 993 641 546 00
96564153600, 965.641.536.00, 965 641 536 00
Scope of delivery:

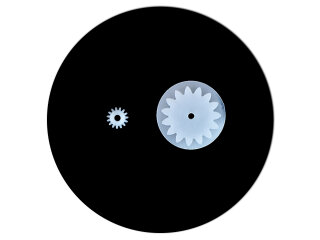

2 gears
Suitable for:
911 (Type 964) Carrera2/Carrera4/Turbo
The 964 can be equipped with either an E15 OR an E20.
The two possible E15 sets can also be found in our shop.
The assignment between engine type/transmission type/year of manufacture/model to the gear type is unfortunately so complex
