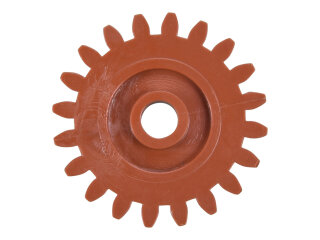

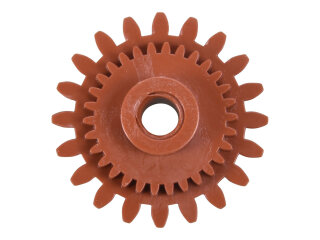

Instrument cluster gear for PORSCHE 911 SC 944 2.5 S S2 speedometer 20x30

Instrument cluster gear for PORSCHE 911 SC 944 2.5 S S2 speedometer 20x30

Item number: 2302

OE reference no.: 911641516FX, 92864110331, 94464131136, 99664131136, 110008229001, 110008326064, 91164151606, 91164151603

21,90 €

incl. 19% VAT , plus

RRP: 25,90 €

receive with purchase 42 Bonuspoints

Available immediately
Shipping today
within
hours and minutes

Delivery time: 1 - 3 working days (DE)

pcs

Available immediately
Shipping today
within
hours and minutes

Delivery time: 1 - 3 working days (DE)

Instrument cluster gear for PORSCHE 911 SC 944 2.5 S S2 speedometer 20x30

Excellent build quality

Description:
If the odometer/trip odometer in your vehicle has failed, this gear is almost always the cause. The original beige-brown gears crumble over the years due to a material defect and must be replaced.

Variants:
Most 911 G models (and some 944s) have this 20x30 gear installed! However, the 944 may also have the 20x21 or 20x22 gear installed. You can find these in the shop by searching, e.g., "20x21".
While we can say with a high degree of certainty, we cannot guarantee 100% which model uses which gear size. Too many influencing factors come into play here (engine type/gearbox type/gear ratio/differential type/year of manufacture/model).
However, the following data reliably helps in determining the correct gear:
20x21 (17.60mm/9.00mm) Number of teeth on opposing gear: 49 teeth 911/928 mph/944
20x22 (17.60mm/9.40mm) Number of teeth on opposing gear: 48 teeth 911/944 mph
20x23 (17.60mm/9.65mm) Number of teeth on opposing gear: 47 teeth 944(S2)/911(G)
20x29 (17.60mm/12.05mm) Number of teeth on opposing gear: 41 teeth some 928 km/h
20x30 (17.60mm/12.55mm) Number of teeth on opposing partner gear: 40 teeth 911/944
20x32 (17.60mm/13.40mm) Number of teeth on opposing partner gear: 38 teeth 928 km/h

Simply count the teeth of the gear this gear engages with and/or use the dimensions as a guide.

Service:
We stock over 100 gear variants and can supply the appropriate gears if needed!

+ all alternative sizes always in stock
+ fast exchange service in case of size deviation

For repairs, we will send you an illustrated repair manual (German/English) via email. You can also find suitable repair videos on YouTube.

Advantages:
Buying a used speedometer initially saves on repair costs, but carries the risk that the gear will break soon. Storage and cold temperatures are particularly damaging to the gears. Due to an incorrect choice of material by VDO, all original gears of this type will break over time!
If you have the speedometer disassembled, it is also advisable to replace the bulbs. These noticeably lose brightness over the years.

Quality:
Our gears are manufactured using a complex and faithful injection molding process, not 3D-printed in-house designs. We work with a manufacturer specializing in the production of plastic gears and a global market leader in repair solutions.
The involute tooth geometry is retained; this is the only way to ensure low-friction sliding of the tooth flanks between the gear pairs.
We use the thermoplastic material Celron with graphite additives. These ensure low friction and wear-free operation.

If you disassemble the speedometer beforehand, please note that the speedometer needle shaft is very delicate. Grip the speedometer needle in the middle and turn it counterclockwise, pulling gently. Friction is all that holds the needle on the shaft.

Partworks GmbH is a German company specializing in the reverse engineering and distribution of spare parts for Porsche. We place particular emphasis on high quality and excellent service. More than 130,000 car enthusiasts worldwide are already satisfied customers of the Paderborn-based company. As specialists in classic car spare parts, we are aware of our customers' quality requirements. Therefore, you can be sure that our redesigned parts meet the specifications very closely and, in some cases, even exceed them. With our own engineering department and internal testing, we can guarantee the reliability of our products. Last but not least, our DIN ISO 9001-certified quality management system confirms the thoroughness of our work. If you see the manufacturer's designation "partworks," this indicates either an in-house development or an original equipment manufacturer (OEM) part (OE quality). OEMs are those manufacturers who supplied the original product to the vehicle manufacturer but cannot sell it under their own brand on the open market. Additional information: Diameter: 17.6 mm, Number of teeth: 20, Diameter: 12.55 mm, Number of teeth: 30. Reference numbers: Please note, this product is a component of the part with the following OE number(s). Our item is not listed separately with its own OE number as a spare part by the vehicle manufacturer. For ease of finding and identification, the OE numbers of the corresponding assembly groups are listed here:

911641516FX, 911.641.516.FX, 911 641 516 FX
92864110331, 928.641.103.31, 928 641 103 31
94464131136, 944.641.311.36, 944 641 311 36
99664131136, 996.641.311.36, 996 641 311 36
110008229001
110008326064
91164151606, 911.641.516.06, 911 641 516 06
91164151603, 911.641.516.03, 911 641 516 03

Reference numbers:
911.641.516.FX
928.641.103.31
944.641.311.36
996.641.311.36
110008229001
110008326064
911.641.516.06
911.641.516.03

Scope of delivery:
1 gear

Suitable for:
Porsche 911 (75-89) (older models = mechanical speedometers have the M17 installed)
Porsche 944-II (from 05.85) (older models = mechanical speedometers have the M11/M15/M17 installed)
Most 911 G-models (and some 944s) have this 20x30 gear installed!
However, the 944 may also have the 20x21 gear installed.
The 911 may also have the 20x22 gear installed. You can find these in the shop by searching, e.g., "20x21"
While we can say with a high degree of certainty
, we cannot say with 100% certainty
which model has which gear size installed. Too many factors are involved (engine type/transmission type/gear ratio/differential type/year of manufacture/model). Should you unexpectedly require a different gear

Product Safety:

Manufacturer information

Namepartworks GmbH

StreetOtto-Stadler-Str. 9c

City33100 Paderborn

StateNordrhein-Westfalen

CountryDeutschland

Emailinfo@partworks.de

Websitehttps://partworks.de

Brand	Model	Type	Year of construction	Motor
Porsche	911 Cabriolet	3.2 Carrera Speedster	1986/8 - 1989/8	160 KW / 218 PS
Porsche	911 Cabriolet	3.2 SC Carrera	1984/10 - 1989/8	152 KW / 207 PS
Porsche	911 F	2.7 S Carrera	1973/8 - 1976/1	129 KW / 175 PS
Porsche	911 F	2.7 SC Carrera RS	1972/8 - 1979/1	154 KW / 209 PS
Porsche	911 F Targa	2.7 SC Carrera RS	1972/8 - 1979/1	154 KW / 209 PS
Porsche	911 G	2.7	1975/9 - 1977/6	121 KW / 165 PS
Porsche	911 G	3.0 SC	1980/8 - 1983/7	150 KW / 204 PS
Porsche	911 G	3.0 SC Carrera	1977/7 - 1980/6	132 KW / 180 PS
Porsche	911 G	3.0 SC Carrera	1979/9 - 1980/6	138 KW / 188 PS
Porsche	911 G	3.0 SC Carrera	1975/9 - 1977/6	147 KW / 200 PS
Porsche	911 G	3.0 SC Carrera	1974/3 - 1983/10	154 KW / 209 PS
Porsche	911 G	3.2	1986/8 - 1989/8	160 KW / 218 PS
Porsche	911 G	3.2 SC Carrera	1984/2 - 1987/6	152 KW / 207 PS
Porsche	911 G	3.2 SC Carrera	1983/8 - 1989/8	170 KW / 231 PS
Porsche	911 G Cabriolet	3.0 SC	1982/8 - 1983/7	150 KW / 204 PS
Porsche	911 G Cabriolet	3.2 SC Carrera	1983/8 - 1984/8	170 KW / 231 PS
Porsche	911 G Targa	2.7	1973/9 - 1975/8	110 KW / 150 PS
Porsche	911 G Targa	2.7	1975/9 - 1977/6	121 KW / 165 PS
Porsche	911 G Targa	2.7 S	1973/8 - 1976/1	129 KW / 175 PS
Porsche	911 G Targa	3.0 SC Carrera	1977/7 - 1980/6	132 KW / 180 PS
Porsche	911 G Targa	3.0 SC Carrera	1979/9 - 1980/6	138 KW / 188 PS
Porsche	911 G Targa	3.0 SC Carrera	1975/9 - 1977/6	147 KW / 200 PS
Porsche	911 G turbo (930)	3.3 SC turbo	1977/9 - 1987/6	221 KW / 301 PS
Porsche	911 G turbo (930)	3.3 turbo	1986/6 - 1989/8	221 KW / 300 PS
Porsche	911 G turbo (930)	3.3 turbo	1986/9 - 1990/11	243 KW / 330 PS
Porsche	911 G turbo (930) Targa	3.3 turbo	1986/9 - 1990/11	221 KW / 301 PS
Porsche	944	2.5	1985/1 - 1987/7	110 KW / 150 PS
Porsche	944	2.5	1987/8 - 1990/12	118 KW / 160 PS
Porsche	944	2.5	1981/6 - 1987/7	120 KW / 163 PS
Porsche	944	2.5 S	1986/8 - 1988/7	140 KW / 190 PS
Porsche	944	2.5 turbo	1985/8 - 1988/7	162 KW / 220 PS
Porsche	944	2.5 turbo	1987/9 - 1991/7	184 KW / 250 PS
Porsche	944	2.7	1988/11 - 1989/8	121 KW / 165 PS
Porsche	944	3.0 S2	1988/12 - 1991/7	155 KW / 211 PS
Porsche	944 Cabriolet	2.5 turbo	1990/11 - 1991/7	184 KW / 250 PS
Porsche	944 Cabriolet	3.0 S2	1988/12 - 1991/7	155 KW / 211 PS
